Features and Benefits
Our are some of the most robust on the market. With Airstage, a stage or stepped rostrum can be simply lifted out of the floor. The stages are stored in a pit just 180-200mm deep and sit flush with the venue floor when stored. They can then be raised into position with a detachable handle. As a result, no extra storage space is required, and minimal handling is needed.
Airstages are best explained by watching our short demonstration video below.
-
Multiple Uses

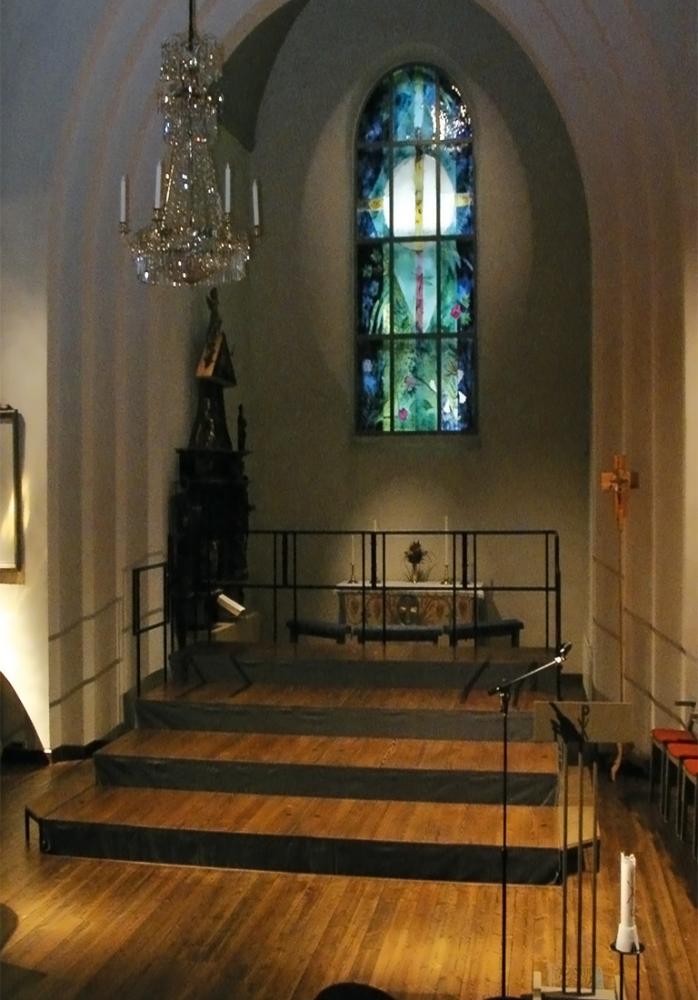

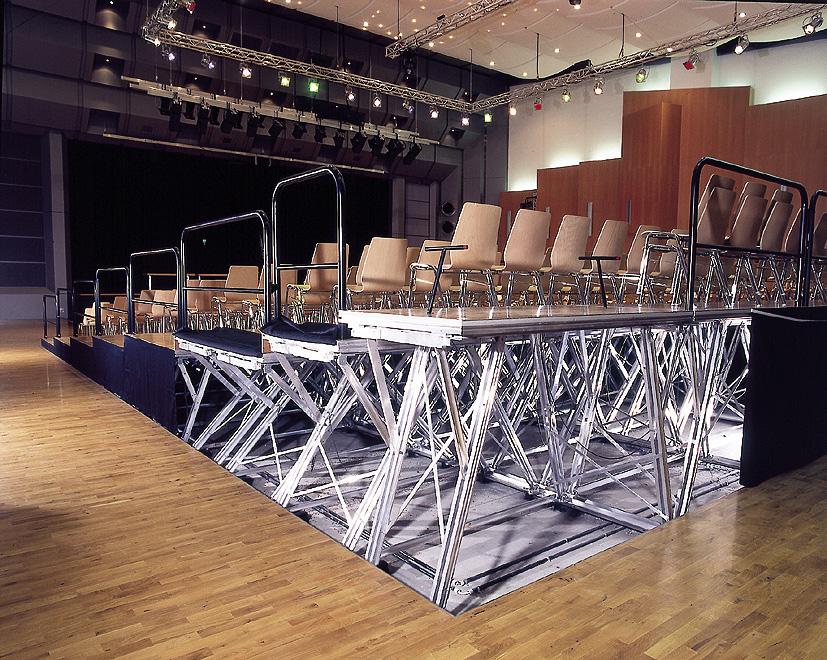

Suitable to create stages, stepped structures, rostra or choir stages.
-
No separate storage space required

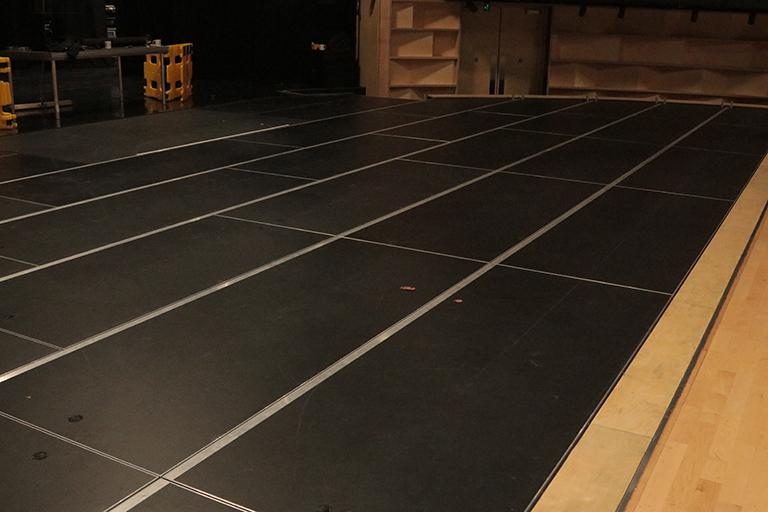

Stage just stows away in the floor
-
Customisable
A wide range of surface finishes is available, but further customisations can be made on request. Please discuss your requirements with us.
-
Height Adjustable
Up to a height of 1500mm
-
Gas Assisted Lift
Gas assisted height adjustment system with safety catches, requiring just 30 seconds and 25kg of force to lift the stage into place.
-
High Performance Load Bearing
Up to 750kg/sqm
-
Certification and Accreditation
TÜV tested, verified static calculations
Options
Accessories
- Stairs
- Access ramps
- Banisters
- Safety rails
- Horizontal stacking trolley
- Vertical stacking trolley
- Stage skirting in a choice of fullness
- Service access hatches

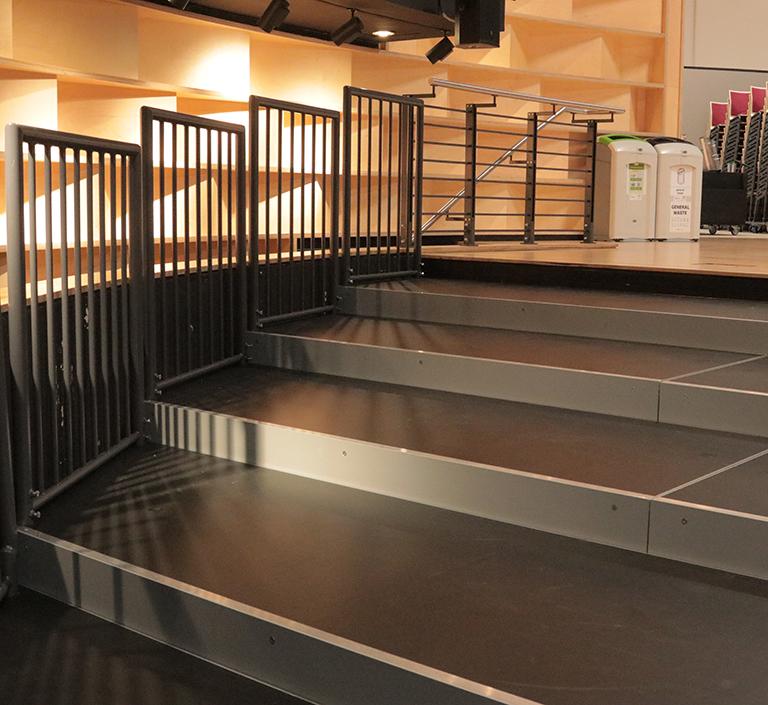

Step unit
Left to right: Drapes, wheelchair access ramp, service access hatch

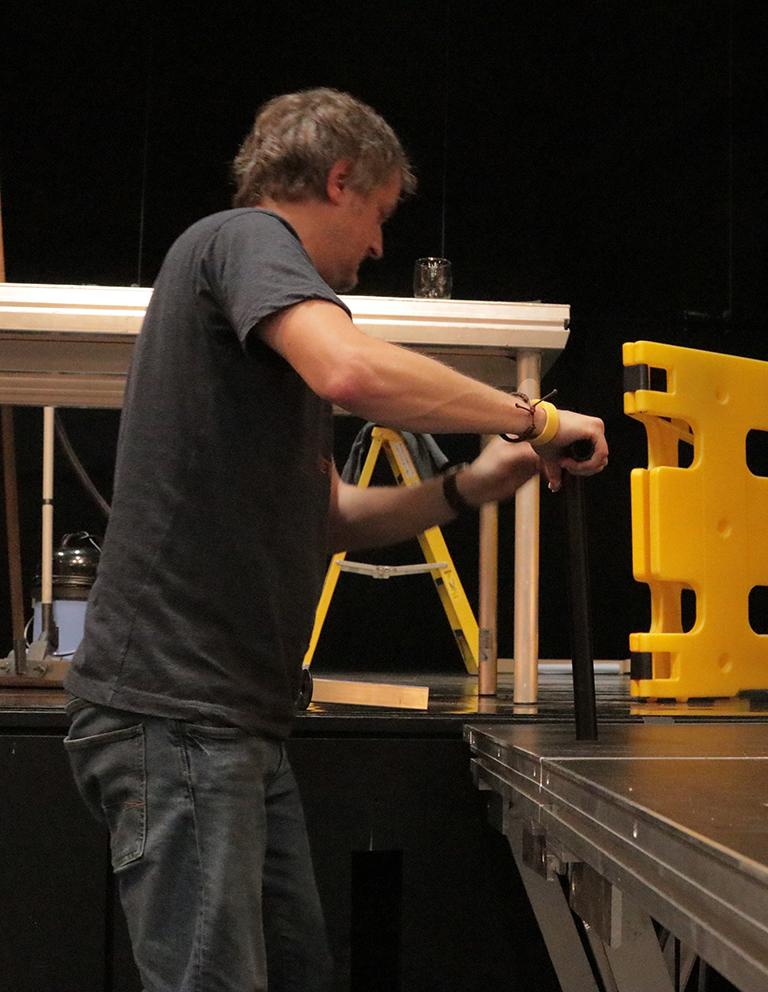

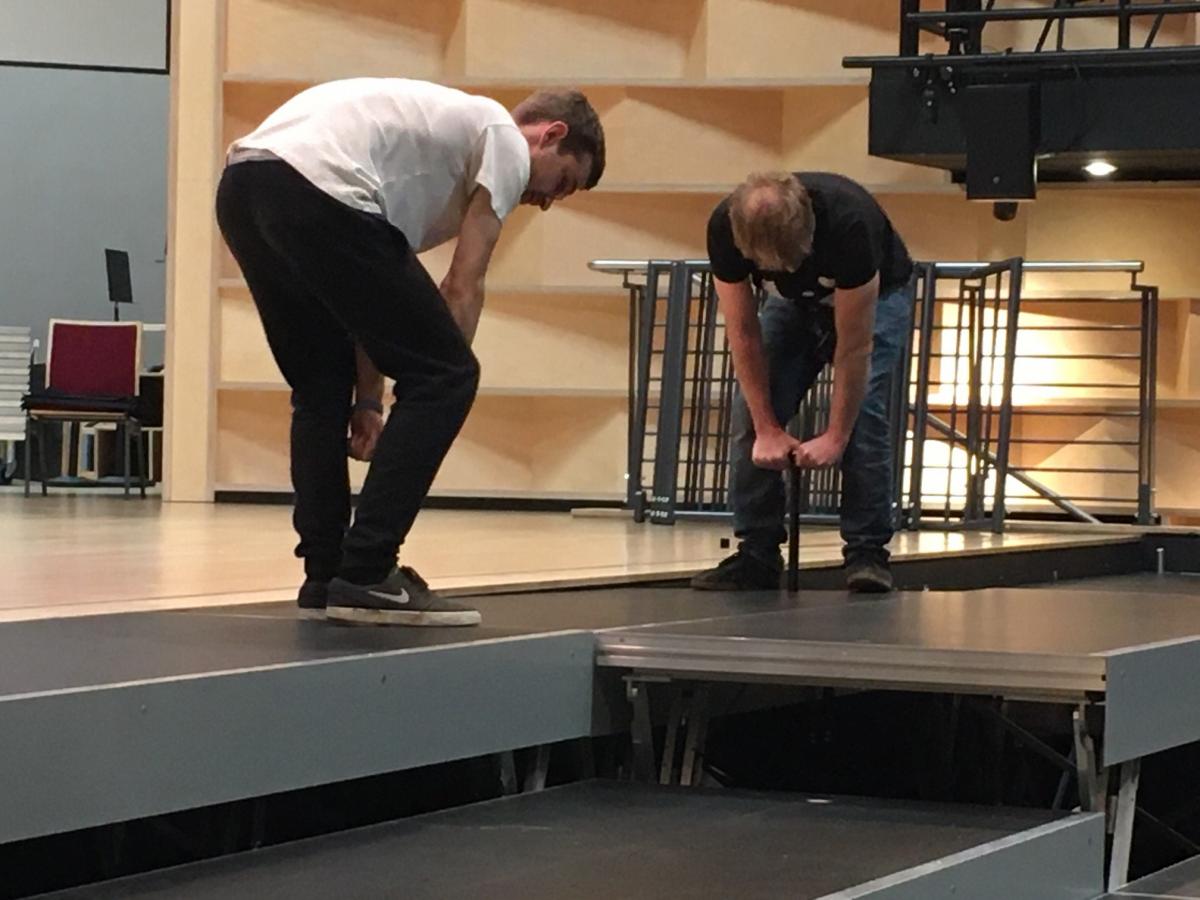

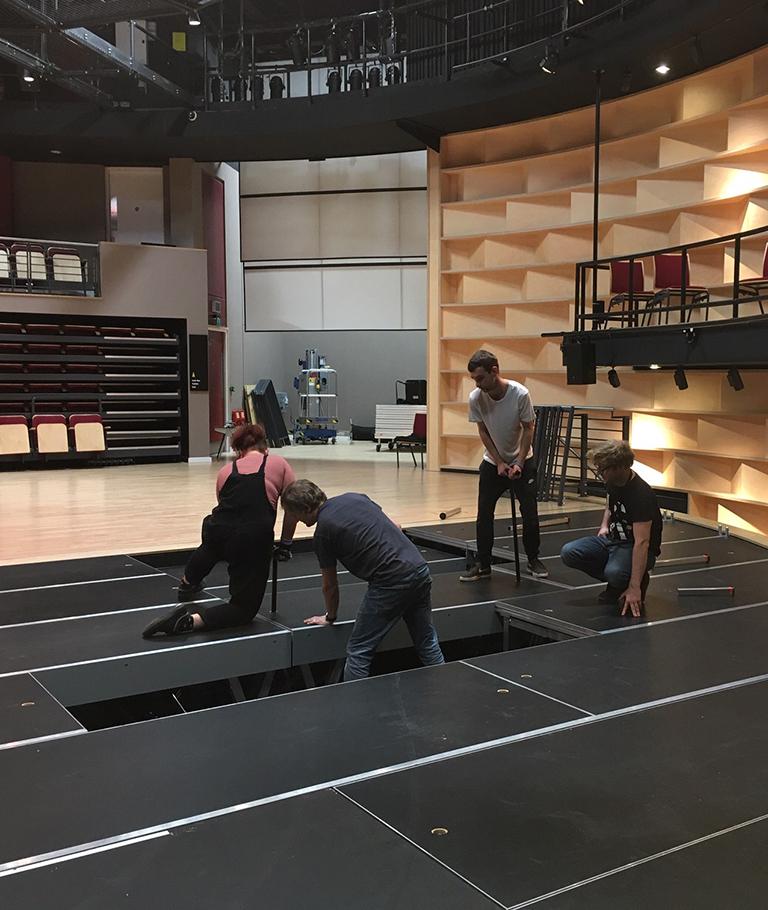

Above: Raising and adjusting the stage
Rail Options
Surface Plate Finishes
Weather resistant black; weather resistant dark brown
Varnished natural beech; varnished natural plywood
Oak parquet
Dimensions
Surface Plate Dimensions
Airstage: 2m x 1m Airstage E: 2m x 1m Airstage G: 3m x 1m
Height Adjustment (Airstage)
Airstage: 0mm, 200mm, 400mm, 600mm, 800mm OR 166.7mm, 333.3mm, 500mm, 666.7mm, 833.3mm above top of pit
Height Adjustment (Airstage E)
200mm, 400mm, 600mm, 800mm, 1m, 1200mm, 1350mm OR 166.7mm, 333.3mm, 500mm, 666.7mm, 833.3mm, 1m, 1166.7mm, 1333.3mm above top of pit
Height Adjustment (Airstage G)
200mm, 400mm, 600mm, 800mm, 1m, 1200mm, 1350mm above top of pit
Maximum Structure Height
Airstage: 0.8m from upper edge of pit Airstage E/G: 1.35m from upper edge of pit
Pit Depth
180-200mm
Profile Height
90mm
