Strong, flexible and modular

Trenomat stages are some of the most robust on the market. The system is modular and completely flexible; stages can be built up from standard 2m x 1m, 1m x 1m or 2m x 05.m modules with a choice of fixed or telescopic legs at various heights. Alternatively the stages can be built to your bespoke design. Fix Stages have a load bearing capacity of up to 750kg/m2.

  • Certification and Accreditations

    TÜV/GS, verified static calculations, DIN4112/1055/15920

  • High Performance Load Bearing

    Up to 1m high: 750kg/sqm; Up to 1.5m high: 500kg/sqm; Up to 4m high (with braces): 750kg/sqm

  • Tool-free assembly

    Legs, in a range of fixed or telescopic heights, simply snap into place.

  • Integrate with Other Staging Systems

    The "Combi-Corner" option allows the stage modules to be joined to other staging systems.

  • Multiple Uses

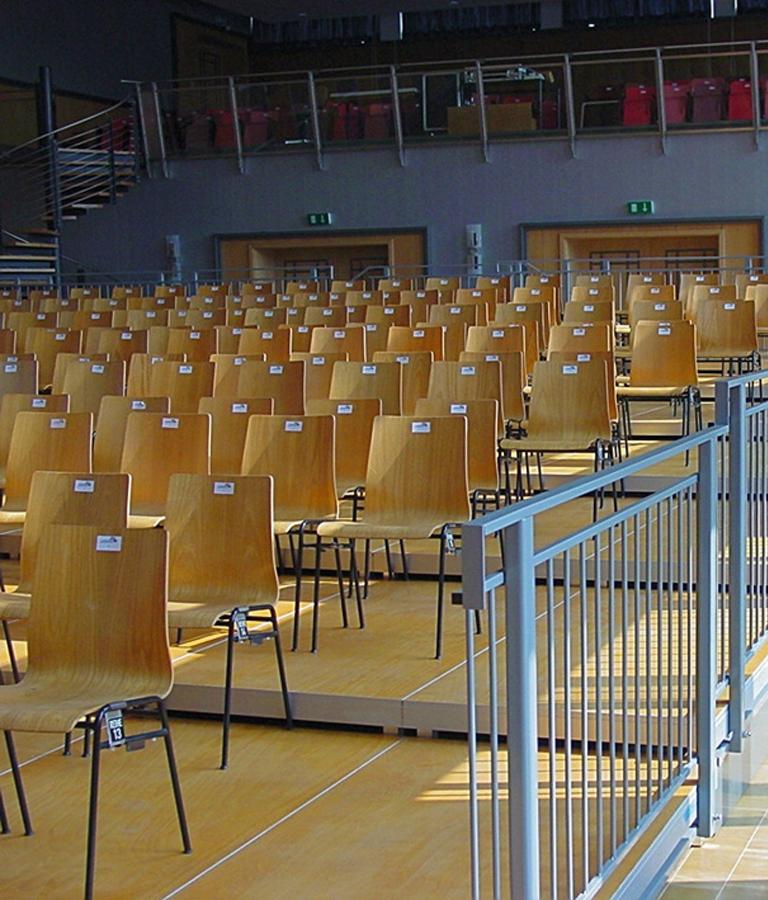

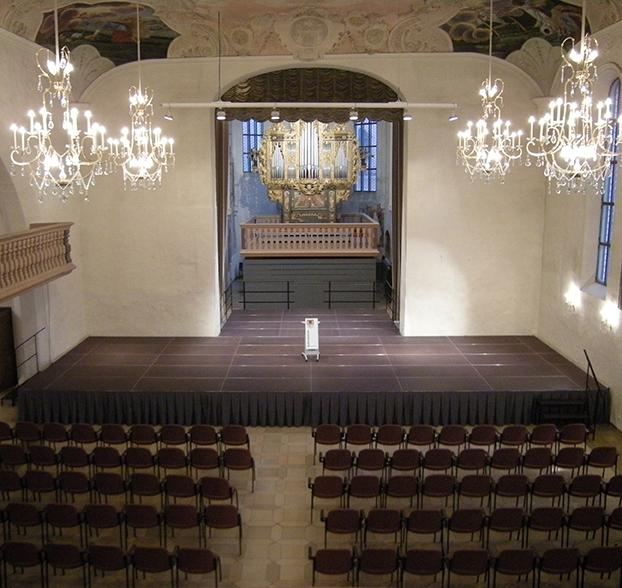

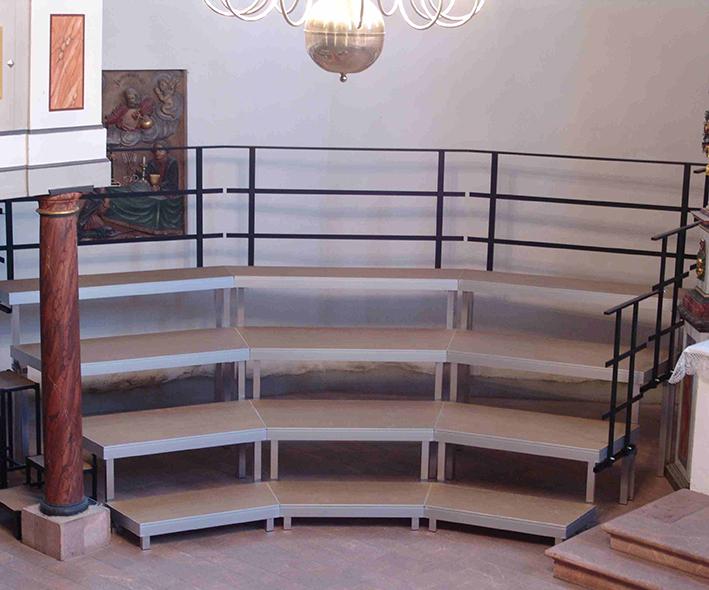

    Suitable to create stages, stepped structures, rostra or choir stages.

  • Small Storage Footprint

    The removable legs make this model space-efficient to store.

  • Customisable

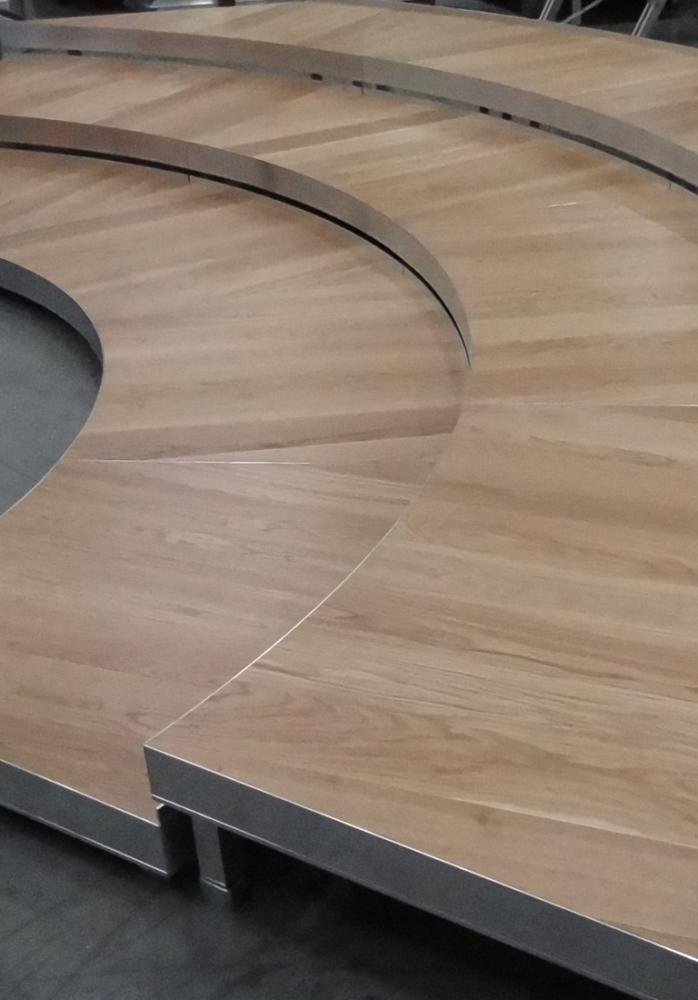

    A wide range of surface finishes is available, but further customisations can be made on request. Please discuss your requirements with us.

  • Lightweight

    Low overall weight, with aluminium profiles.

Options

Leg Options

Trenomat FIX stages are available with a wide choice of leg types, full details of which can be viewed on the product datasheet.

Options include:

  • Round or square legs in a variety of sizes
  • Fixed height legs or telescoping legs
  • A variety of leg height options, with maximum stage height being 4m. Extra bracing is required at some heights; please see datasheet for details


Foot Options

A wide variety of foot options are available, including protective rubber feet and levelling feet. See product datasheet for details.



Further Accessories

  • Component connection clamps
  • Stairs
  • Access ramps
  • Banisters
  • Safety rails
  • Horizontal stacking trolley
  • Vertical stacking trolley
  • Snap in rollers to convert stages to storage trolleys
  • Stage skirting in a choice of fullness
  • Diagonal supports for higher stages



Left to right: Leg options (see datasheet for full details), step unit



Left to right: Drapes, wheelchair access ramp, service access hatch



Rail Options







Surface Plate Finishes



Chequerboard; weather resistant black



Weather resistant dark brown; varnished brown



Varnished natural beech; varnished natural plywood

Dimensions

Weight

Approx 29kg

Surface Plate Dimensions

2m x 1m, 1m x 1m or 2m x 0.5m as standard. Custom dimensions available on request.

Maximum Structure Height

Without additional diagonal braces: 1.5m With additional diagonal braces: 4m.

Stacking Height

900-950mm For all height options, see product datasheet in the downloads area of this page.

Downloads

Trenomat Fix Datasheet
Download
